We have succeeded in configuring SoCs with 64-bit RISC-V Rocket Chip using LiteX, and booting RISC-V Debian on two FPGA boards, a Qmtech Wukong board and a Digilent Nexys Video.
These SoCs are based on https://github.com/litex-hub/linux-on-litex-rocket etc.
The featured image shows running
htop on a terminal UART-connected to the Nexys Video with a quad-core SoC.
We have modified litex, pythondata-cpu-rocket and linux-on-litex-rocket repositories to add
full2d as CPU variants for Wukong board with an XC7A100T.
The CPU variants
full2d mean quad mediumcore and dual bigcore, respectively.
The SoC for Nexys Video with an XC7A200T supports up to quad bigcore
As shown in the table below, the SoC using LiteX can support twice the number of cores as the SoC using Vivado (vivado-risc-v) introduced in this article, probably because the peripheral IP cores are small.
|FPGA board||Max bigcore|

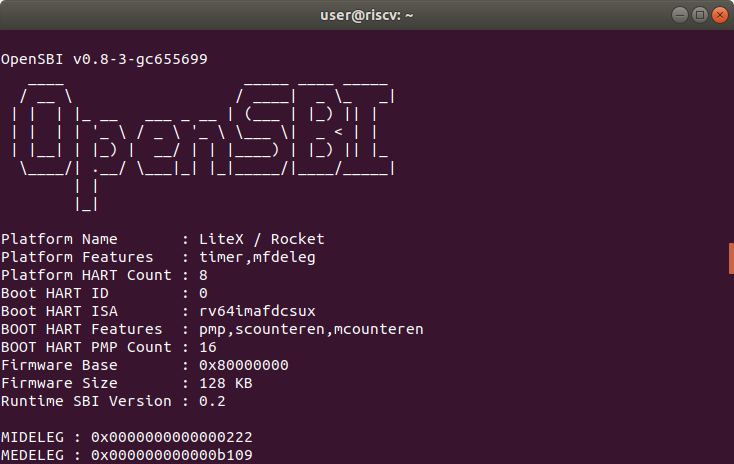

OpenSBI for LiteX/Rocket
We have ported OpenSBI to LiteX/Rocket.
For this reason, we are booting using
boot.json instead of
boot.bin using Berkeley Boot Loader (BBL).
The boot sequence is as follows.
OpenSBI -> Linux -> rootfs such as Debian
Debian rootfs for LiteX/Rocket
Debian rootfs for LiteX/Rocket uses
sysvinit instead of
systemd, as described in Boot-Debian-On-Litex-Rocket Step3: Build Debian rootfs.
This time, we booted Debian using the rootfs provided in the releases.
Compared to vivado-risc-v as a Debian environment, we get the impression that the current system is unstable because the RCU stalls at
We have succeeded in configuring SoCs with 64-bit RISC-V Rocket Chip using LiteX, and booting RISC-V Debian on Qmtech Wukong board and Digilent Nexys Video.
The SoCs for Wukong board and Nexys Video using LiteX support up to dual-core and quad-core respectively.
